32 — OLE Automation

OLE automation represents a communication mechanism between cooperating applications. Applications that are OLE automation servers have the capability to expose their objects through a series of properties and methods. Applications that are OLE clients or OLE controllers can access these exposed properties and methods through the OLE IDispatch interface.

One of the most popular uses of OLE automation is to expose the capabilities of your application to the extent that your application becomes fully controllable from a general purpose OLE controller, such as Microsoft's Visual Basic. In this fashion, Visual Basic can act as a powerful macro language for your application.

The MFC Library and the Visual C++ Developer Studio provide extensive support for developing OLE automation servers. In this chapter, we first explore these capabilities by constructing a simple server application; later, we review other issues that concern OLE automation development.

Building an Automation Server

The OLE automation server that we build in this chapter is simple indeed; this tiny program performs one task only, and that is the multiplication of two numbers. The program is capable of running stand-alone using a simple dialog-based user interface. It also supports invocation from within an OLE controller.

Figure 32.1 shows the user interface of this application, ASRV. To use this application, first enter the two multiplicands in the two edit fields on the left side, then click on the = button to calculate the result.

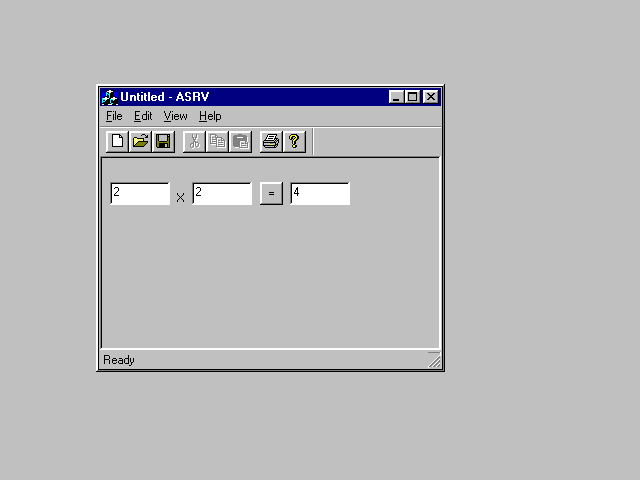

Figure 32.1. The user interface of the ASRV server.

The OLE automation methods and properties closely correspond to these user-interface elements. Two properties, Multi1 and Multi2, correspond to the two multiplicands; these properties are read and write. The Result property, representing the result of the multiplication, is a read-only property. Finally, the Set method corresponds to the function of the = button; this method carries out the actual multiplication.

We construct this application in three steps. First, the application's skeleton is created. Next, the user interface is edited and the functions performing the calculations are added. Finally, OLE automation capabilities are implemented.

Constructing the ASRV Application Skeleton

The ASRV application skeleton should be constructed using the AppWizard. The application should be a single-document-based application with default settings.

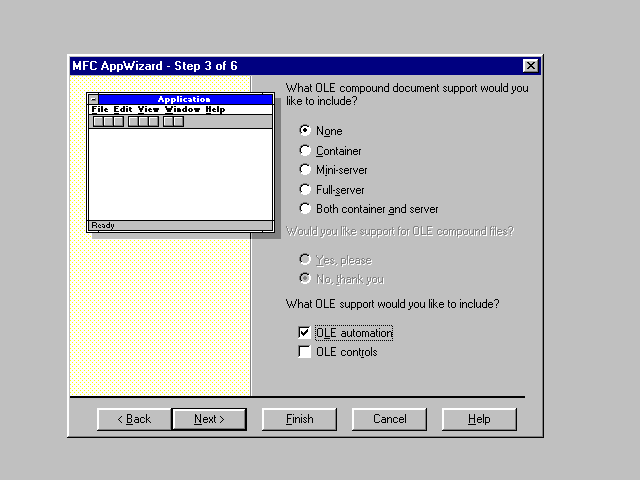

Support for OLE automation is specified in Step 3 of AppWizard (Figure 32.2). Make sure the OLE automation check box is marked before proceeding from this step.


Figure 32.2. Adding OLE automation support.

We should also change the base class of the new application's view class before dismissing AppWizard. In AppWizard Step 6 (Figure 32.3), select the class CASRVView and select CFormView as its base class. As a CFormView-based class, our new view class uses a dialog template to provide its visual appearance.

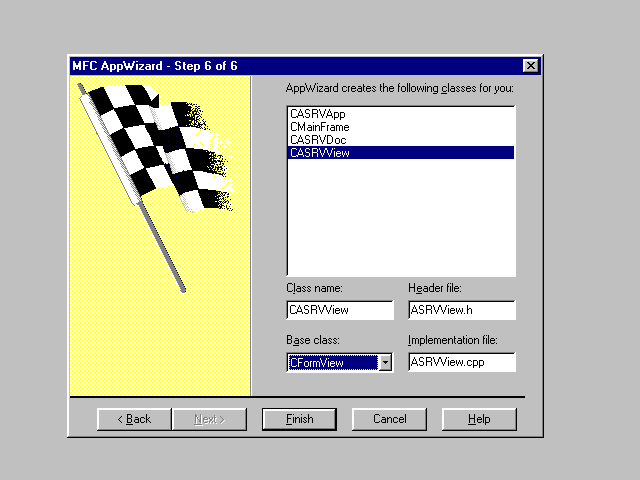

Figure 32.3. Changing the base class for the view.

At this point, you can click on the Finish button to complete construction of the skeleton application.

Implementing the Calculation

I almost used the term "Calculator Engine" in the title, but I figured that such a term might cause some of you to burst out in hysterical laughter. After all, calling a simple multiplication operation an "engine" may be too much, even in this day and age of hype, pomp, and circumstance!

The first step in implementing the calculator is to create its user interface. AppWizard created us a dialog corresponding to the CFormView-derived view class; however, the dialog is spartan, to say the least (Figure 32.4). Edit this dialog by removing the default TODO field and adding three edit fields, a button, and a static field as shown earlier in Figure 32.1.

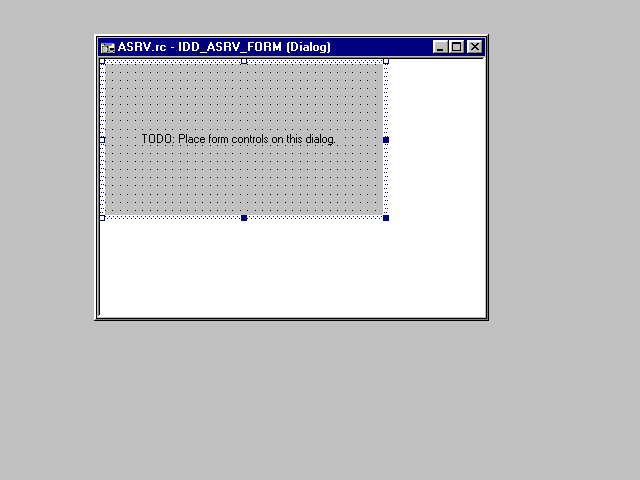

Figure 32.4. "Spartan" default dialog supplied by AppWizard.

The two edit fields on the left side should be called IDC_MULTI1 and IDC_MULTI2, respectively. The edit field on the right-hand side should be called IDC_RESULT. You may consider making this field a read-only field. The button, with a caption set to a single equal sign, should be called IDC_CALCULATE. You may consider setting the Default property for this button to enable using the Enter key to perform the calculation.

While the dialog is open for editing, invoke the ClassWizard. Using the ClassWizard, add a member function to the view class corresponding to a mouse click on the IDC_CALCULATE button (Figure 32.5).

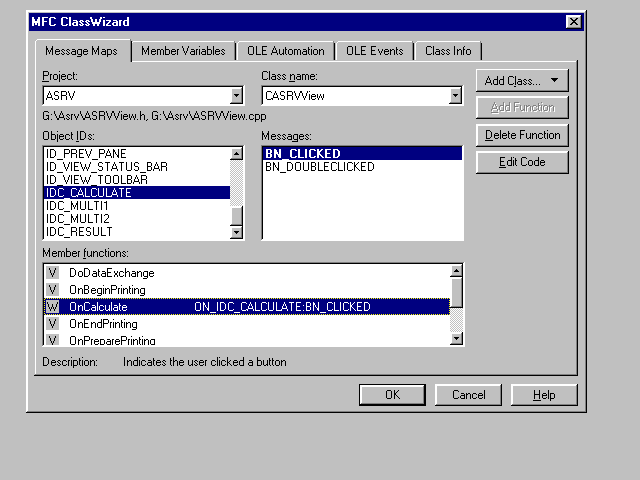

Figure 32.5. Adding a member function to handle clicks on the Calculate button.

At this point, you are probably expecting us to add member variables corresponding to the edit fields. However, this is not how we are going to proceed at this time. The member variables that represent the multiplicands and the result are added to the document class instead; correspondingly, we have to modify the DoDataExchange member function of the view class manually.

After dismissing the ClassWizard, open the header file for the document class for editing. In the Attributes section of the CASRVDoc class declaration, add declarations for three new member variables as follows:

class CASRVDoc : public CDocument

{

protected: // create from serialization only

    CASRVDoc();

    DECLARE_DYNCREATE(CASRVDoc)

// Attributes

public:

long m_lMulti1;

    long m_lMulti2;

    long m_lResult;

...

These variables must also be initialized. Initialization can take place in the constructor (Listing 32.1).

    Listing 32.1. Variable initialization in the CASRVDoc constructor.
CASRVDoc::CASRVDoc()

{

    // TODO: add one-time construction code here

    m_lMulti1 = 0;

    m_lMulti2 = 0;

    m_lResult = 0;

    EnableAutomation();

    AfxOleLockApp();

}

To actually perform the calculation, we need a new member function in CASRVDoc. This member function, DoCalculate, will be declared as follows:

class CASRVDoc : public CDocument

{

    ...

// Operations

public:

void DoCalculate();

...

The implementation of DoCalculate is shown in Listing 32.2.

    Listing 32.2. Implementation of CASRVDoc::DoCalculate.
void CASRVDoc::DoCalculate()

{

    m_lResult = m_lMulti1 * m_lMulti2;

}

Two things remain to be done. First, we need to connect the member variables in CASRVDoc with the CFormView-based dialog. Second, we must add a call to CASRVDoc::DoCalculate from within the handler function for mouse clicks on the IDC_CALCULATE button.

The modified version of CASRVView::DoDataExchange is shown in Listing 32.3. Basically, we do what ClassWizard would have done, if only the variables were local to this class.

    Listing 32.3. Modified version of CASRVDoc::DoDataExchange.
void CASRVView::DoDataExchange(CDataExchange* pDX)

{

    CFormView::DoDataExchange(pDX);

    //{{AFX_DATA_MAP(CASRVView)

    //}}AFX_DATA_MAP

    CASRVDoc *pDoc = GetDocument();

    ASSERT_VALID(pDoc);

    DDX_Text(pDX, IDC_MULTI1, pDoc->m_lMulti1);

    DDX_Text(pDX, IDC_MULTI2, pDoc->m_lMulti2);

    DDX_Text(pDX, IDC_RESULT, pDoc->m_lResult);

}

In the implementation of CASRVView::OnCalculate (Listing 32.4), we call the document class's member function DoCalculate to perform the actual calculation. We also utilize the UpdateData function to ensure that the member variables and the dialog fields are properly updated before and after the calculation.

    Listing 32.4. Implementation of CASRVView::OnCalculate.
void CASRVView::OnCalculate()

{

    // TODO: Add your control notification handler code here

    CASRVDoc *pDoc = GetDocument();

    ASSERT_VALID(pDoc);

    UpdateData(TRUE);

    pDoc->DoCalculate();

    UpdateData(FALSE);

}

At this point, the application can be recompiled and should operate normally as a stand-alone application.

Adding Automation Support

The first step in adding automation support is through the ClassWizard. To add properties and methods to the CASRVDoc class, invoke the ClassWizard, select the OLE Automation tab, and select the CASRVDoc class (Figure 32.6).

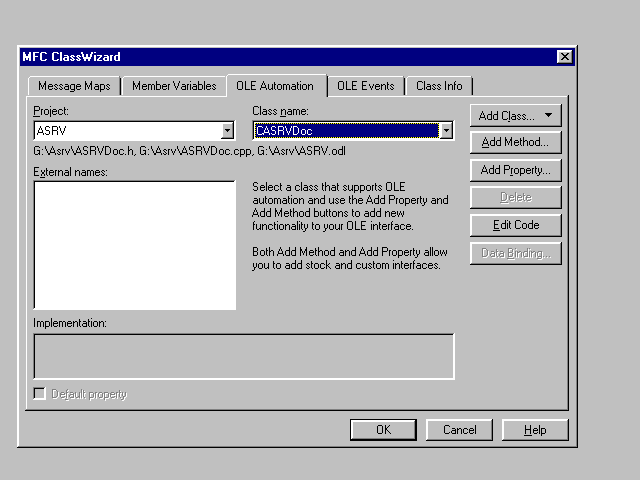

Figure 32.6. Using the ClassWizard to add automation support.

First, add two properties corresponding to the two multiplicands. Click on the Add Property button to invoke the Add Property dialog. In this dialog, specify Multi1 as the external name of the new property and long as the property's type. Modify the default variable name supplied by ClassWizard to read m_lMulti1 (Figure 32.7). Click on the OK button to dismiss this dialog.

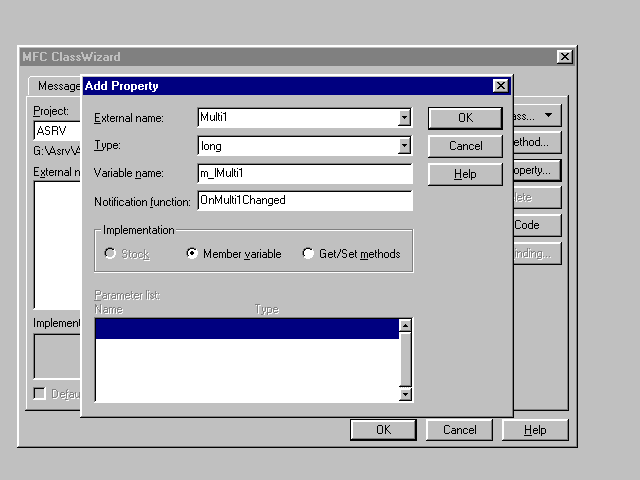

Figure 32.7. Adding a new property.

Next, use the ClassWizard to add another property, Multi2, in a similar fashion.

The third property, Result, differs from the previous two. Because this is a read-only property, we choose Get/Set methods as the property's implementation. Or, to be more precise, we use a Get method, for implementing a read-only property is accomplished simply by erasing the ClassWizard-generated name for the Set function (Figure 32.8).

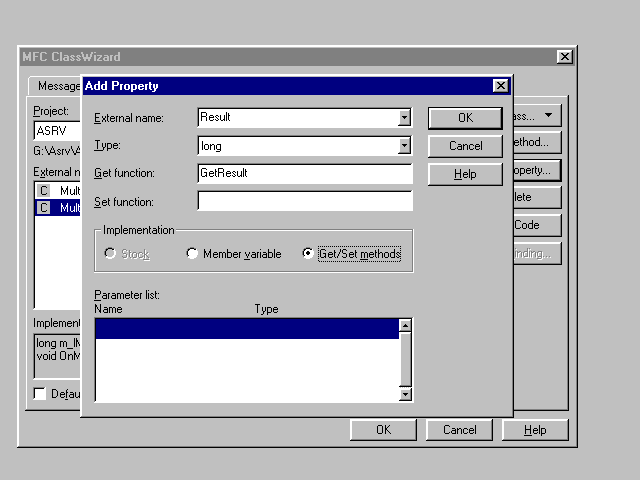

Figure 32.8. Adding a read-only property.

The one thing that remains is adding the Calculate method that performs the actual calculation. To add this method, click on the Add Method button. In the Add Method dialog, type Calculate as both the External and Internal name of the new method, and select void as the method's return type (Figure 32.9).

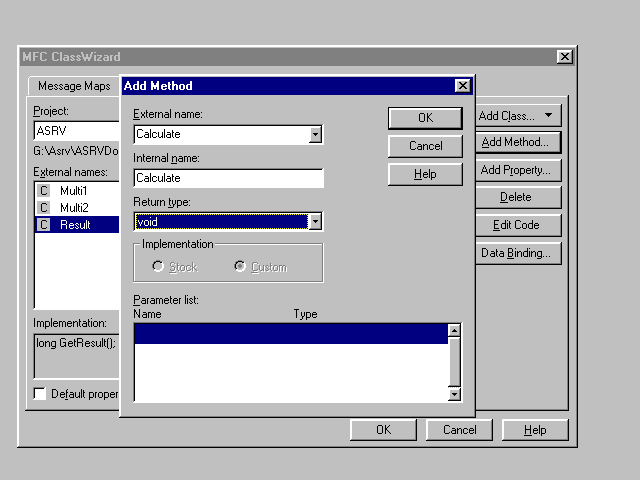

Figure 32.9. Adding a new method.

At this point, we are finished with ClassWizard; it can be dismissed by clicking on the OK button.

Take a brief look at the header file of CASRVDoc. Towards the end of the class declaration, the ClassWizard added a series of items to the class's dispatch map:

class CASRVDoc : public CDocument

{

    ...

protected:

    ...

    // Generated OLE dispatch map functions

    //{{AFX_DISPATCH(CASRVDoc)

    long m_lMulti1;

    afx_msg void OnMulti1Changed();

    long m_lMulti2;

    afx_msg void OnMulti2Changed();

    afx_msg long GetResult();

    afx_msg void Calculate();

    //}}AFX_DISPATCH

    DECLARE_DISPATCH_MAP()

    DECLARE_INTERFACE_MAP()

};

There are several things that should be noticed here. First, as you can see, the ClassWizard generated declarations for the member variables m_lMulti1 and m_lMulti2; therefore, the declarations we added by hand earlier are no longer needed and should be removed from the Attributes section.

Second, the ClassWizard created the method function Calculate; as there is no need for this and a separate DoCalculate, these two functions can be consolidated into one and we can get rid of DoCalculate.

Third, notice that the variables m_lMulti1 and m_lMulti2 are in a section of the class declaration that is marked protected. However, we access these variables from CASRVView::DoDataExchange. The simplest way to ensure that the program can be compiled is to add CASRVView as a friend class to CASRVDoc.

Because of these numerous changes, I have listed the final form of the CASRVDoc class declaration in its entirety (see Listing 32.5).

    Listing 32.5. CASRVDoc class declaration with automation support.
class CASRVDoc : public CDocument

{

friend class CASRVView;

protected: // create from serialization only

    CASRVDoc();

    DECLARE_DYNCREATE(CASRVDoc)

// Attributes

public:

    long m_lResult;

// Operations

public:

// Overrides

    // ClassWizard generated virtual function overrides

    //{{AFX_VIRTUAL(CASRVDoc)

    public:

    virtual BOOL OnNewDocument();

    virtual void Serialize(CArchive& ar);

    //}}AFX_VIRTUAL

// Implementation

public:

    virtual ~CASRVDoc();

#ifdef _DEBUG

    virtual void AssertValid() const;

    virtual void Dump(CDumpContext& dc) const;

#endif

protected:

// Generated message map functions

protected:

    //{{AFX_MSG(CASRVDoc)

        // NOTE - the ClassWizard will add and remove member

        //  functions here.  DO NOT EDIT what you see in these

        //  blocks of generated code !

    //}}AFX_MSG

    DECLARE_MESSAGE_MAP()

    // Generated OLE dispatch map functions

    //{{AFX_DISPATCH(CASRVDoc)

    long m_lMulti1;

    afx_msg void OnMulti1Changed();

    long m_lMulti2;

    afx_msg void OnMulti2Changed();

    afx_msg long GetResult();

    afx_msg void Calculate();

    //}}AFX_DISPATCH

    DECLARE_DISPATCH_MAP()

    DECLARE_INTERFACE_MAP()

};

The ClassWizard added two notification handlers and two method functions to the implementation of CASRVDoc. After removing the DoCalculate member function from the implementation file, modify CASRVDoc::GetResult and CASRVDoc::Calculate as shown in Listing 32.6. The notification handler functions do not need to be altered.

    Listing 32.6. CASRVDoc::GetResult and CASRVDoc::Calculate.
long CASRVDoc::GetResult()

{

    // TODO: Add your property handler here

    return m_lResult;

}

void CASRVDoc::Calculate()

{

    // TODO: Add your dispatch handler code here

    m_lResult = m_lMulti1 * m_lMulti2;

}

One thing remains to be done before we can recompile the application. In the function CASRVView::OnCalculate there is a now obsolete reference to the DoCalculate member function of the document class. Change this reference to Calculate instead, and now you can recompile the program.

The Type Library

Before we test our application, let's take a quick peek at one of the files generated and maintained by ClassWizard. The ASRV.odl file (Listing 32.7) is a script file created in Microsoft's Object Definition Language. It is compiled using the MkTypLib.exe tool; the resulting type library (TLB) file is an OLE compound document that can be accessed by automation clients using the ITypeComp, ITypeInfo, and ITypeLib OLE interfaces.

    Listing 32.7. The ASRV.odl type library source file.
// ASRV.odl : type library source for ASRV.exe

// This file will be processed by the Make Type Library (mktyplib)

// tool to produce the type library (ASRV.tlb).

[ uuid(603E9429-01C6-11CF-87C3-00403321BFAC), version(1.0) ]

library ASRV

{

    importlib("stdole32.tlb");

    //  Primary dispatch interface for CASRVDoc

    [ uuid(603E942A-01C6-11CF-87C3-00403321BFAC) ]

    dispinterface IASRV

    {

        properties:

     // NOTE - ClassWizard will maintain property information here.

     //    Use extreme caution when editing this section.

            //{{AFX_ODL_PROP(CASRVDoc)

            [id(1)] long Multi1;

            [id(2)] long Multi2;

            [id(3)] long Result;

            //}}AFX_ODL_PROP

        methods:

     // NOTE - ClassWizard will maintain method information here.

     //    Use extreme caution when editing this section.

            //{{AFX_ODL_METHOD(CASRVDoc)

            [id(4)] void Calculate();

            //}}AFX_ODL_METHOD

    };

    //  Class information for CASRVDoc

    [ uuid(82F6E8E9-01BD-11CF-87C3-00403321BFAC) ]

    coclass CASRVDoc

    {

        [default] dispinterface IASRV;

    };

    //{{AFX_APPEND_ODL}}

};

The interfaces ICreateTypeInfo and ICreateTypeLib are used by the tools themselves (such as MkTypLib.exe).

Testing the Application

OLE automation servers can best be tested from within a general-purpose automation controller. If you have Visual Basic installed on your system, you can use it as an ideal OLE automation testing tool. (Both 16- and 32-bit versions should work fine together with 32-bit automation servers created using Visual C++.)

To test the ASRV server from within Visual Basic 3.0, I created the simple form shown in Figure 32.10.

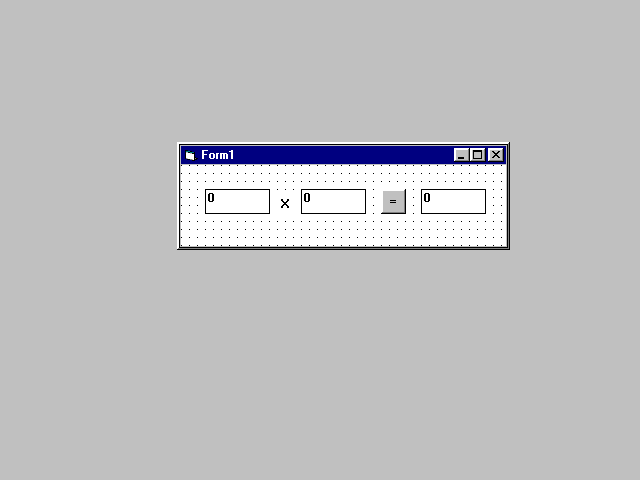

Figure 32.10. Visual Basic form used for testing ASRV.

The three edit fields in this form are called Multi1, Multi2, and Result, respectively. The button with the equal sign in it is called Calculate.

To perform the test, I attached the code shown in Listing 32.8 to the Form. The declaration (Dim statement) of ASRV is performed in the (general) section; the Form_Load subroutine is attached to the Load event of the Form object; the Calculate_Click subroutine is attached to the Click event of the Calculate button. By implementing the test application this way, we can avoid reloading the ASRV server every time a calculation is performed.

    Listing 32.8. Visual Basic code used for testing ASRV.
Dim ASRV As object

Sub Form_Load ()

    Set ASRV = CreateObject("ASRV.Document")

End Sub

Sub Calculate_Click ()

    ASRV.Multi1 = Val(Multi1.Text)

    ASRV.Multi2 = Val(Multi2.Text)

    ASRV.Calculate

    Result.Text = Str(ASRV.Result)

End Sub

Note that during the test, the ASRV application never becomes visible. This is because when launched with the /Automation command-line parameter (and this is how Visual Basic launches it), the AppWizard-generated application never displays its main application window. If it were a multiple-document interface application that was already running, the behavior would be slightly different: The application window would remain visible, but no new frame window would be displayed to represent the new document. Either way, it should be kept in mind that a document launched using OLE automation may not have an associated view window.

This Visual Basic application is identical in functionality and nearly identical in appearance to the original user interface of ASRV. The difference, of course, is that the ASRV application now performs as a black-box module. Not only does even this simple server application show the power of OLE automation, it also demonstrates the potential of OLE automation controllers such as Visual Basic to act as highly powerful system integration applications.

Standard Methods and Properties

When building the ASRV server, I intentionally used a very simple set of methods and properties in order to keep the example program simple and focused. However, Microsoft actually provides a recommended set of properties and methods that production applications should implement:

  • Every application should implement at least one object, an Application object, with its standard set of methods and properties.

  • Applications should also implement, if applicable, collections of documents, document objects, and object collections within documents.

This brings up an interesting issue that we have not had an opportunity to address during the construction of ASRV. ASRV's simple properties were merely long integers. The use of string properties is relatively straightforward, but what if the value of a property or the result of a method is another object? This is the case, for example, when an OLE controller requests a particular item from an application's document collection. How is the document item passed to the controller?

The answer is simple, but far from obvious. A method that returns another object should in fact return a pointer to an IDispatch OLE interface. Such a pointer can be obtained for any CCmdTarget-derived object by calling the CCmdTarget member function GetIDispatch. For example, if your application object has a method that returns the active document, this method may be implemented similarly to the following:

LPDISPATCH GetActiveDocument()

{

    CFrameWnd *pWnd = (CFrameWnd *)AfxGetMainWnd();

    ASSERT_VALID(pWnd);

    CMyDocument *pDoc = pWnd->GetActiveDocument();

    ASSERT_VALID(pDoc);

    return pDoc->GetIDispatch(TRUE);

}

The hierarchy of standard objects that OLE automation servers should support is shown in Figure 32.11.

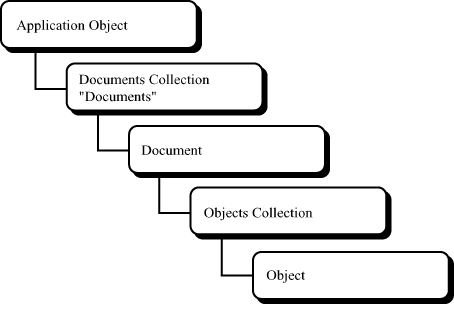

Figure 32.11. Standard OLE automation objects.

All objects must support two standard properties, shown in Table 32.1.

    Table 32.1. Properties common to all standard objects.
Property/Method


Mandatory


Read/Write


Description


P: Application

Yes

Read-only

The application object

P: Parent

Yes

Read-only

The parent of the current object

All collection objects (for example, the documents collection) must support an additional set of properties and methods, shown in Table 32.2.

    Table 32.2. Properties and methods for collection objects.
Property/Method


Mandatory


Read/Write


Description


P: Count

Yes

Read-only

Number of items in collection

P: _NewEnum

Yes

Read-only

Enumerator for iteration

M: Add

No

Adds an item to the collection

M: Item

Yes

Retrieves a collection item

M: Remove

No

Removes a collection item

The Application Object

The application object represents the application itself. This object should support the set of properties and methods listed in Table 32.3.

    Table 32.3. Properties and methods for application objects.
Property/Method


Mandatory


Read/Write


Description


P: ActiveDocument

No

Read-only

Active document object

P: Caption

No

Read-write

Application window title

P: DefaultFilePath

No

Read-write

Default directory path

P: Documents

No

Read-only

The documents collection

P: FullName

Yes

Read-only

Executable full filename

P: Height

No

Read-write

Height of application window

P: Interactive

No

Read-write

User interaction allowed

P: Left

No

Read-write

Application window left side

P: Name

Yes

Read-only

Application name

P: Path

No

Read-only

Executable file path

P: StatusBar

No

Read-write

Status bar text

P: Top

No

Read-write

Application window top

P: Visible

Yes

Read-write

Application window visible

P: Width

No

Read-write

Width of application window

M: Help

No

Display online help

M: Quit

Yes

Exit the application

M: Repeat

No

Repeat last action

M: Undo

No

Undo last action

The Documents Collection

The documents collection represents all the application's currently active documents in a collection. This collection object should implement, in addition to properties and methods common to all objects and to all collections, an additional two methods, shown in Table 32.4.

    Table 32.4. Methods of the documents collection.
Property/Method


Mandatory


Read/Write


Description


M: Close

Yes

M: Open

Yes

Opens a new document

The Document Object

The document object represents an individual document. In addition to standard properties and methods, document objects should support the properties and methods shown in Table 32.5.

    Table 32.5. Properties and methods of document objects.
Property/Method


Mandatory


Read/Write


Description


P: Author

No

Read-write

Author of the document

P: Comments

No

Read-write

Document comments

P: FullName

Yes

Read-only

Document full filename

P: Keywords

No

Read-write

Document keywords

P: Name

No

Read-only

Document filename

P: Path

Yes

Read-only

Document filepath

P: ReadOnly

No

Read-only

Read-only document

P: Saved

Yes

Read-write

Changes were saved

P: Subject

No

Read-write

Subject of document

P: Title

No

Read-write

Document title

M: Activate

Yes

Activates first document window

M: Close

Yes

Closes the document

M: NewWindow

No

Creates new window for document

M: Print

Yes

Prints the document

M: PrintOut

No

Same as Print

M: PrintPreview

No

Activates Print Preview

M: RevertToSaved

No

Reloads last saved version

M: Save

Yes

Saves the document

M: SaveAs

Yes

Saves using filename

The Objects Collection

The objects collection is offered by document objects as applicable. This collection contains application-specific items. For example, in the case of a graphics application, the objects collection may represent a series of shapes that together comprise a drawing (a document). In the case of a word processor, the objects collection may represent paragraphs of text. Or, in the case of a spreadsheet application, this collection may represent the collection of spreadsheet cells.

The implementation of the objects collection and that of individual objects (and indeed, whether these are implemented at all) is implementation-dependent. If you choose to implement these items, remember to add the methods and properties common to all objects, and those common to all collections.

Summary

OLE automation is a means of communication between OLE automation servers and OLE automation controllers using the OLE IDispatch interface. The MFC Library and the Developer Studio provide extensive support for the development of OLE automation servers.

Constructing an automation server through AppWizard requires that you select the OLE automation check box in AppWizard Step 3. This adds automation support to your application and enables your application's document class for automation.

Automation methods and properties are added through the ClassWizard. Methods are represented by member functions. Properties are either represented by member variables or by Get/Set methods. If you wish to implement a read-only (or write-only) property, use Get/Set methods as the property's implementation, and erase the unwanted method while still in ClassWizard.

ClassWizard also creates a type library source file, which is a script written using the Object Description Language. When a type library is generated from this script using the MkTypLib.exe tool, it can be utilized by other applications for finding out about the server's automation interface.

OLE automation servers can be tested and used from automation controllers. General purpose automation controllers include programming environments such as Visual Basic. The ability to use automation servers as black box components shows the power of OLE automation as well as the power of Visual Basic and similar development systems as system integration tools.

Microsoft recommends that OLE automation applications expose a series of standard objects through properties and methods. These objects include the Application object, the application's documents collection, individual document objects, the collection of objects within a document, and, if applicable, objects (items) that comprise a document. A set of standard properties and methods is defined for these that other applications may attempt to utilize.

Previous Page Main Page Next Page



|  About us | Categories | New Releases | Most Popular | Web Tutorial | Free Download | Drivers |



2013 Soft Lookup Corp. Privacy Statement
